Smallrig Universal Baseplate Arca-Swiss Height-Adjustable Mount Kit / Plate / Arca-Swiss / Manfrotto Compatible 4233 / 4234

Key Features

Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233

• 1. Built-in 15mm rod clamps, easy to expand the follow focus, matte box, lens support and other accessories.
• 2. Strong compatibility. Height adjustable, compatible with different cameras and lenses; Arca base width adjustable, compatible with most Arca quick release plates.
• 3. Anti-false-touch design, built-in anti-off pin, double insurance equipment safer
• 4. The top Arca quick release plate is compatible with DJI RS series stabilizers, allowing for quick transitions between handheld, stabilizer, and tripod shooting.
• 5. The Arca base is adjustable both horizontally and vertically. Horizontal adjustment facilitates cage installation, while vertical adjustment aids in telephoto lens center of gravity adjustment.
• 6. Modular design allows for independent use of the top part.

Arca-Swiss / Manfrotto Compatible Mount Plate Kit 4234

• 1.Strong compatibility, adjustable width, compatible with most Arca quick release plates.
• 2.Anti-false-touch design, built-in anti-off pin, double security for your equipment.
• 3.Built-in Manfrotto 501 at the bottom, allowing for easy switching between Arca-Swiss and Manfrotto.
• 4.Top Arca quick release plate is compatible with DJI RS series stabilizers, enabling quick transitions between handheld, stabilizer and tripod.

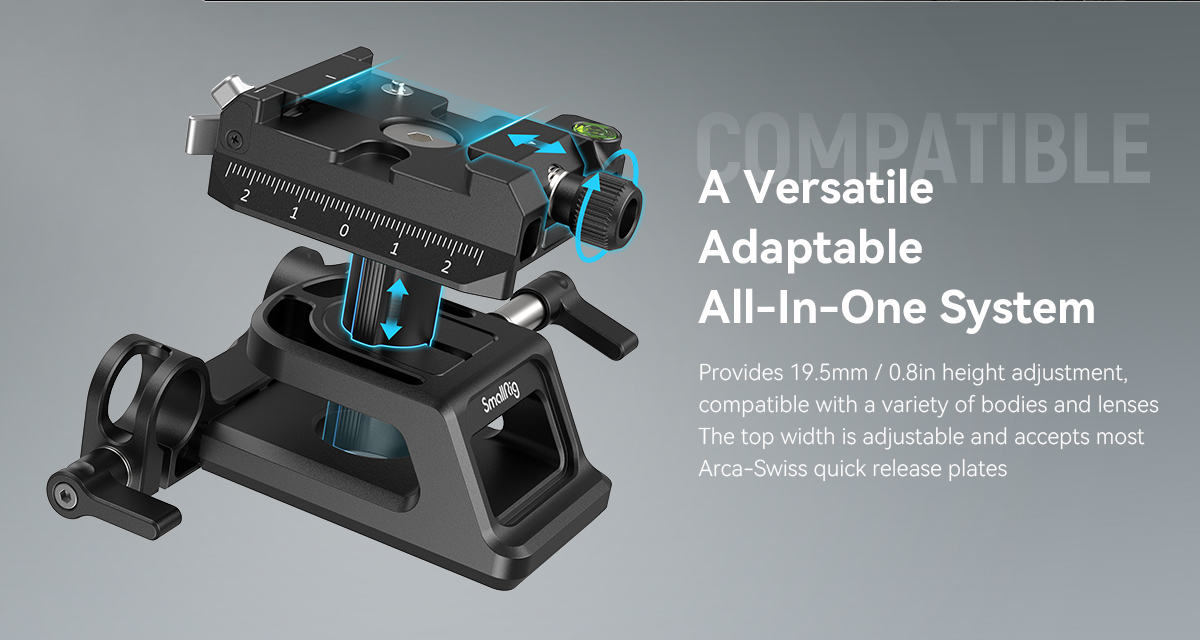

SmallRig Universal Arca-Swiss Height-Adjustable Mount Plate Kit 4233 is designed to make it easy for users to install accessories such as follow focus, matte box, lens support, etc. after installing the 15mm rods. The mount plate is height-adjustable and compatible with most mirrorless cameras and lenses. The top width can be quickly adjusted through a knob, ensuring compatibility with most Arca quick release plates on the market, eliminating any compatibility concerns.

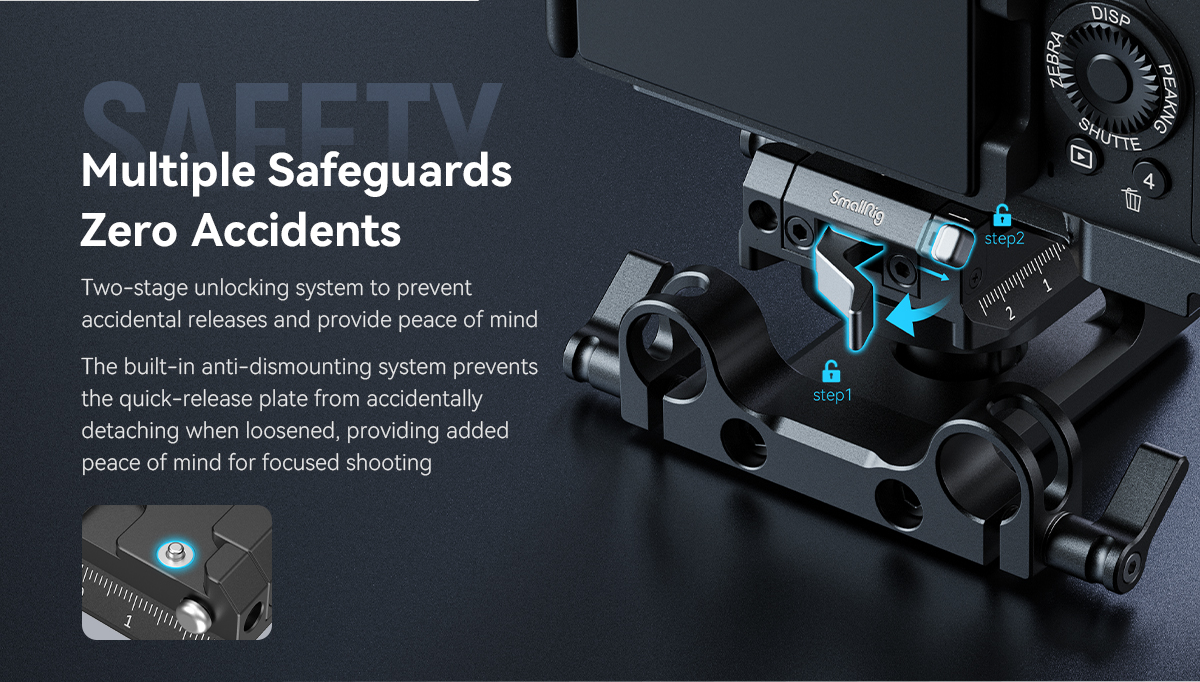

The included Arca quick release plate is compatible with DJI RS series stabilizers, allowing for quick transitions between handheld, stabilizer, and tripod setups.; locking lever with two-stage unlocking design and built-in anti-dislodgement, preventing accidental contact, to protect the equipment safety. The top of the Mount Plate features a modular design, making it easy to switch its orientation for compatibility with cages and telephoto lenses to adjust the center of gravity. When disassembled, it can be used independently as an Arca-Swiss/Manfrotto Mount Plate. Built-in 1/4"-20 threaded holes and 3/8"-16 threaded holes at the bottom, expandable quick release plate for easy mounting to a tripod.

Designer: Tracy Joy

Designer: Tracy Joy

Compatibility:

Universal

Specifications

Product Dimensions: 80 x 79.4 x32mm

Package Dimensions: 96 x 67.5 x 29mm

Product Weight: 116±5g

Package Weight: 151±5g

Material(s): Aluminum Alloy, Stainless Steel

In the Box

• Arca-Swiss / Manfrotto Compatible Mount Plate Kit x1
• Flat-head Screwdriver x 1
• User Manual x 1
