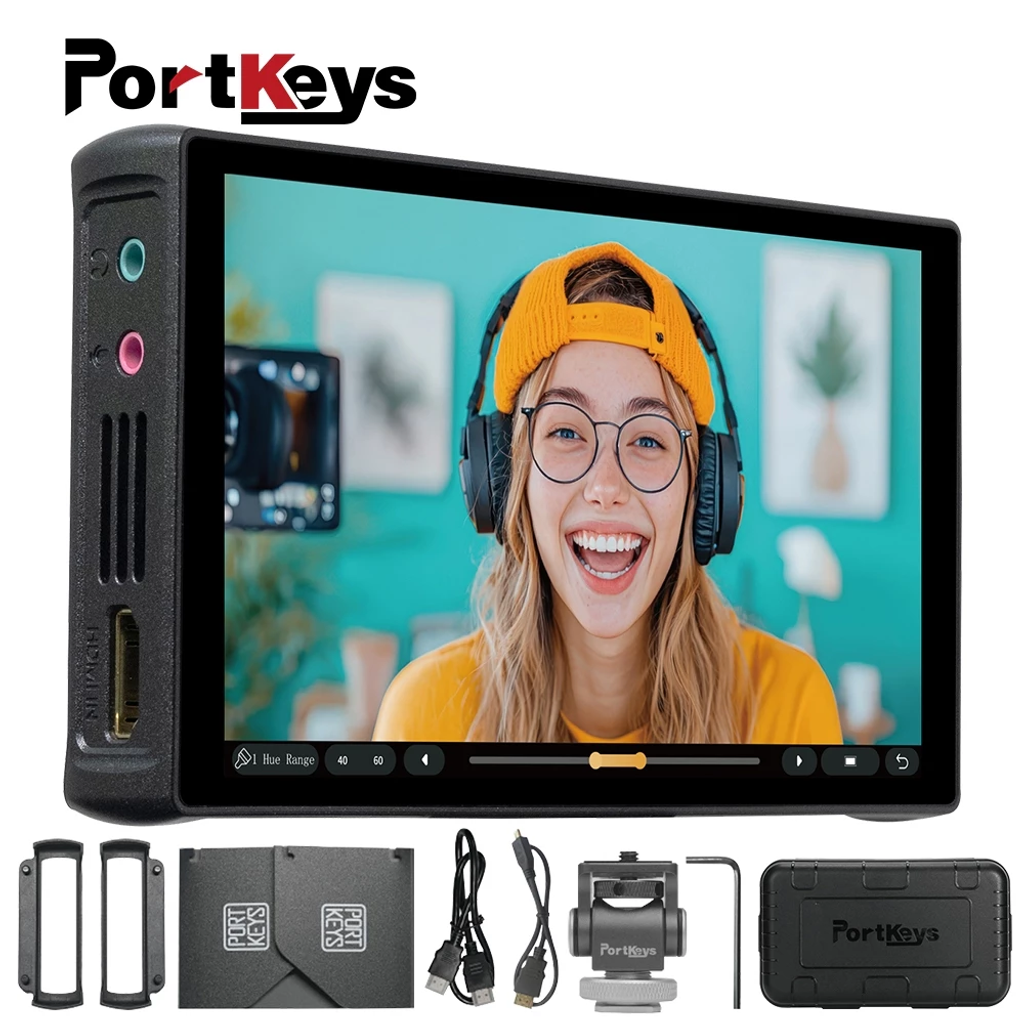

Portkeys 4K HDMI Touchscreen Monitor with 3D LUT Support (PT5 II 5" / PT6 5.2" / HD7H 7" (NEW))

Key Features

PT6

• 5.2-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1500:1 contrast ratio.
• Maximum brightness of 600nits, 100% DCI-P3 coverage.
• 1 x 4K HDMI input, 1 x HDMI input.
• Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
• 3D LUT monitoring and 3D LUT HDMI output capabilities.
• Built-in Sony NP-F and Canon LP-E6 style battery plate.
• 5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
• Low power draw: only 6W.
• Lightweight and rugged ABS + PC housing: only 170g/6.0oz.

The Portkeys PT6 is a professional entry-level 5.2-inch on-camera monitor with 600nits of brightness, 100% coverage of DCI-P3 color space, HDMI input and output ports, and 3D-LUT output capabilities.

PT 5 II

• 5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
• Maximum brightness of 500nits.
• 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
• Maximum input/output resolutions: 4K DCI at 24p or 4K UHD at 30p.
• Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
• 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
• The dual battery plate accepts Sony NP-F or Canon LP-E6 batteries.
•  5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
• Low power draw: only 7W.
• Lightweight and rugged aluminum housing: only 150g/5.29oz.

HD7H

• 7" 1280 x 720 HDMI Input Monitor
• Supports up to DCI 4K24 Video Input
• 1000 cd/m² Brightness | 1000:1 Contrast
• Histogram | Focus Peaking | Zebra
• False Color | Anamorphic Modes | Markers
• 178° Viewing Angle
• 3.5mm Audio Output, Built-In Speaker
• Power via L-Series Battery or DC Input
• Top Buttons, 1/4"-20 Bottom Thread
• Includes HDMI and AV Cables

The Portkeys PT5 II is an entry-level and very affordable 5-inch Wide Color Gamut touchscreen on-camera monitor. This HDMI-only monitor has a maximum brightness of 500nits and can be powered for hours by Sony NP-F or Canon LP-E6 batteries. Ready for your next creative adventures, the compact and rugged design houses a complete set of professional monitoring tools

The Portkeys PT6 is a lightweight 5.2-inch on-camera touchscreen monitor with an impressive budget/feature ratio, all in a very compact form factor.

The housing of the PT6 is made of robust polycarbonate and ABS that helps keeps the weight down to only 170g/6oz (without battery).

This monitor has a maximum brightness of 600nits, perfect for shooting indoors or in a controlled studio environment. The 10-bit (8+2 FRC) panel covers 100% of the DCI-P3 color space, which means no color banding, accuracy, and true-to-life color reproduction. This 5.2-inch monitor has a FullHD 1920 x 1080 resolution, a large 178° viewing angle, and a 1500:1 contrast ratio.

On the left side of the monitor, you’ll find an HDMI input port that can take resolutions up to 4K DCI at 24fps or 4K UHD at up to 30fps. On the right end side, an HDMI output port with a maximum resolution of 1080p60 allows you to output a clean video feed. Furthermore, the HDMI output can also display a video signal with a 3D LUT, anamorphic de-squeeze, and image adjustments such as contrast, brightness, and tone modifications.

But don’t let the compact form factor of the PT6 fool you, as it is packed with many professional monitoring tools, including:

• Exposure tools: Luma and RGB Waveform, Histogram, and Zebra to accurately expose the image.

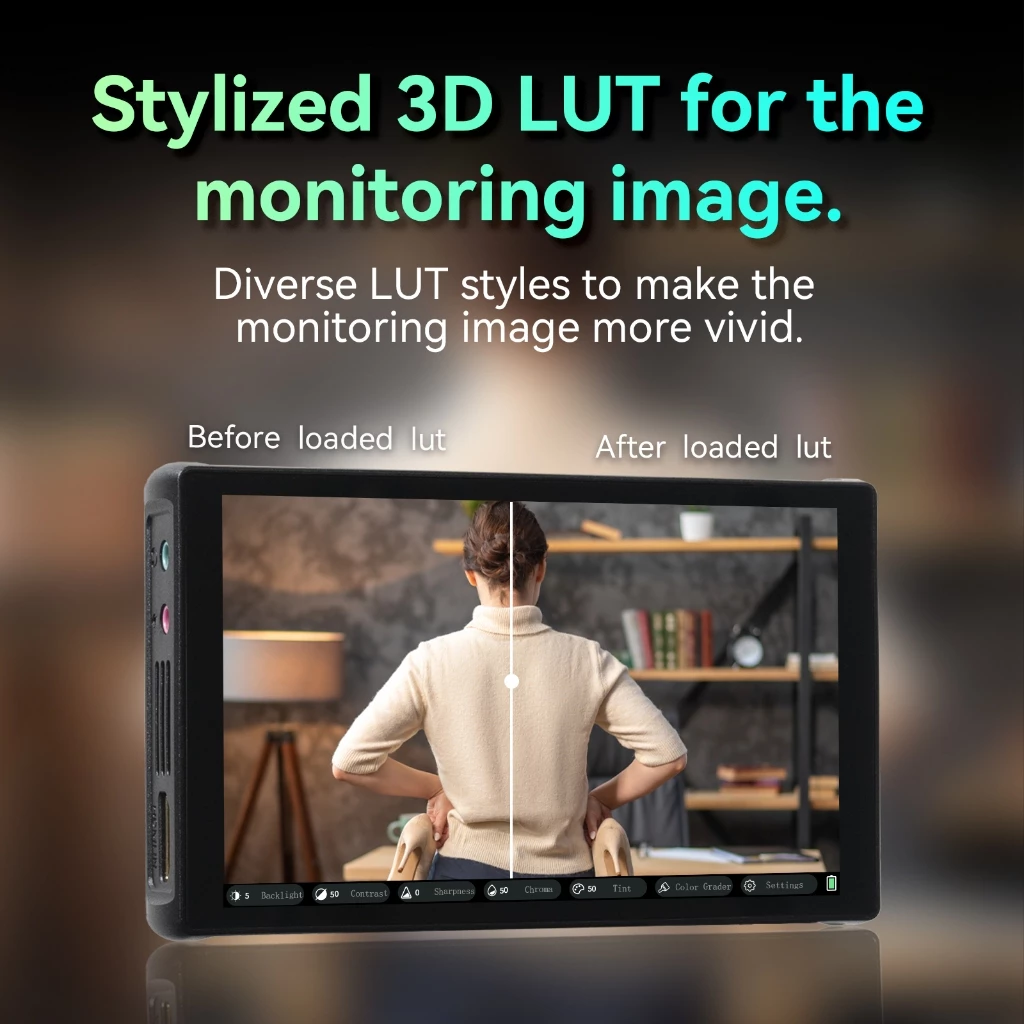

• 3D LUT monitoring and 3D LUT HDMI output. You can load custom LUTs via the USB port on the left side of the monitor.
• False Color and ARRI False Color mode.
• A new Peaking algorithm with a Peaking Frame feature so your camera’s UI can stay clear.
• Customized image crop to zoom in anywhere in the image.
• Framing guides, grids, aspects.
• Audio meters, and you can also monitor your audio signal via the 3.5mm headphone jack on the left side of the PT6.
• Anamorphic image de-squeeze with all the standard ratios (1.33x, 1.5x, 2.0x) and the possibility to enter a custom aspect ratio from 0.25 to 4.0x.

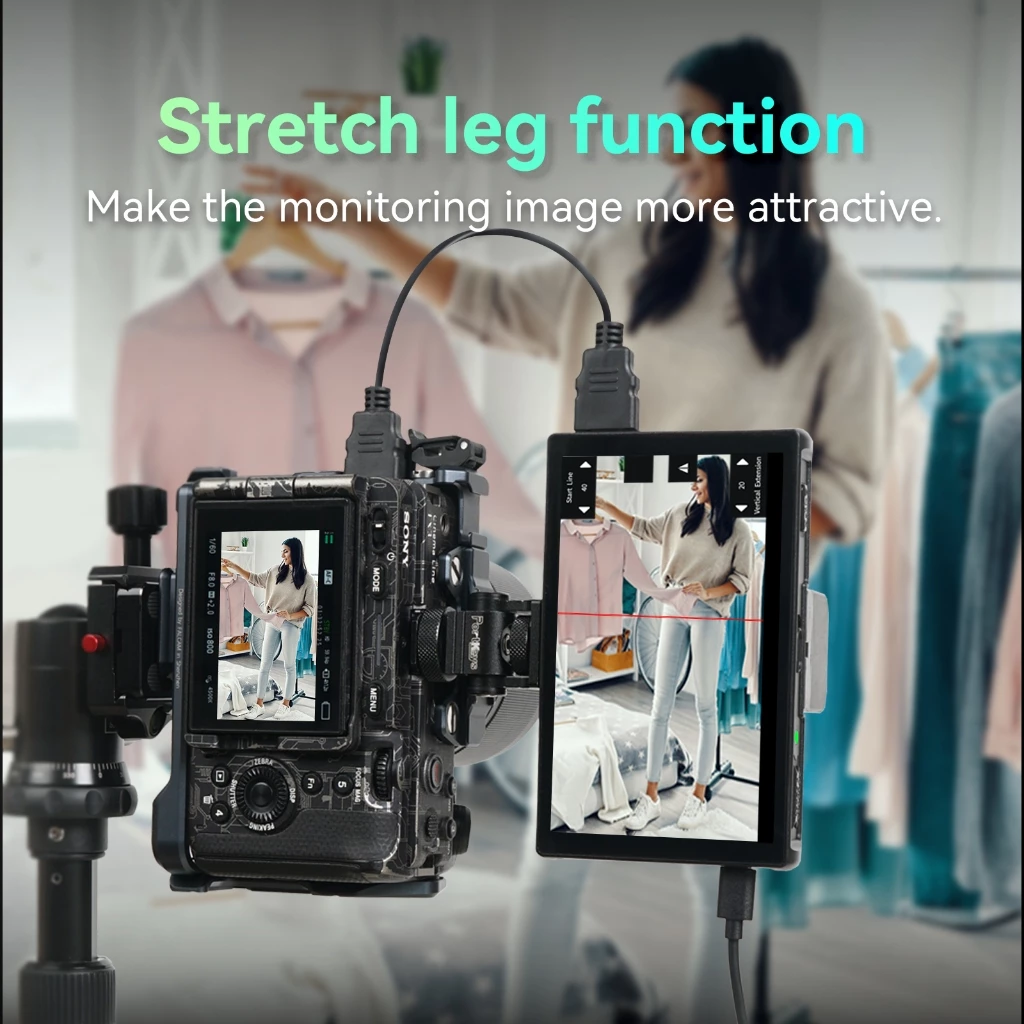

• Stretch leg tool: when shooting vertically, you can stretch the bottom part of the image.
• Sharpness, chroma, brightness, backlight, tint, and color temperature adjustments.

In terms of power, you’ll find a dual built-in battery plate at the back of the monitor that accepts either Sony NP-F or Canon LP-E6 batteries. With an extremely low power draw of only 6W, a single Canon LP-E6N battery pack can give you up to three hours of battery life!

Also, the 5V USB-A port on the left side and the 5.5mm barrel connector on the right side of the PT6 provide additional power inputs.

In the Box

• PORTKEYS PT6 5.2" 4K HDMI Touchscreen Monitor
• Sunshade
• HDMI Cable
• Micro-HDMI to HDMI Cable
• 2 x Rubber Cover
• MH-2 Mount
• Storage Box
• Limited 1-Year Manufacturer Warranty
• Not in the Box
• Essential Batteries & Chargers (Not Included)
