Key Features

DC-550 Pro

• 5.5 Inch Touch Screen, 1200 Nits Daylight Viewable
• 2 Histograms (RGB, Brightness)
• 3 Parade Waveforms (RGB, Y, YUV)
• Professional Monitoring Software/Custom 3D LUT
• Accept 4K 30fps HDMI
• Triple Power Supply (USB-C, NPF Battery, Power Adapter)

DC-550 Lite

• 5.5 Inch Button Menu Control, 400 Nits Daylight Viewable
• 1 Histograms (Brightness)
• 1 Parade Waveforms (Y)
• Professional Monitoring Software/Custom 3D LUT
• Accept 4K 30fps HDMI
• Triple Power Supply (USB-C, NPF Battery, Power Adapter)

DC-X3

• 6" Touch Screen On-Camera Monitor, 2000 Nits Daylight Viewable
• IPS Full HD 1920 x 1080 Display, 3D LUTs
• HDMI and 3G-SDI Input and Output
• Built-In Image Management Tools
• Up to DCI/UHD 4K30 Input and Loop Output
• L-Series Battery Plate, USB-C DC Input
• Quiet Cooling Fan
• Includes Sun Hood, HDMI Cable
• Includes Shoe Mount Adapter

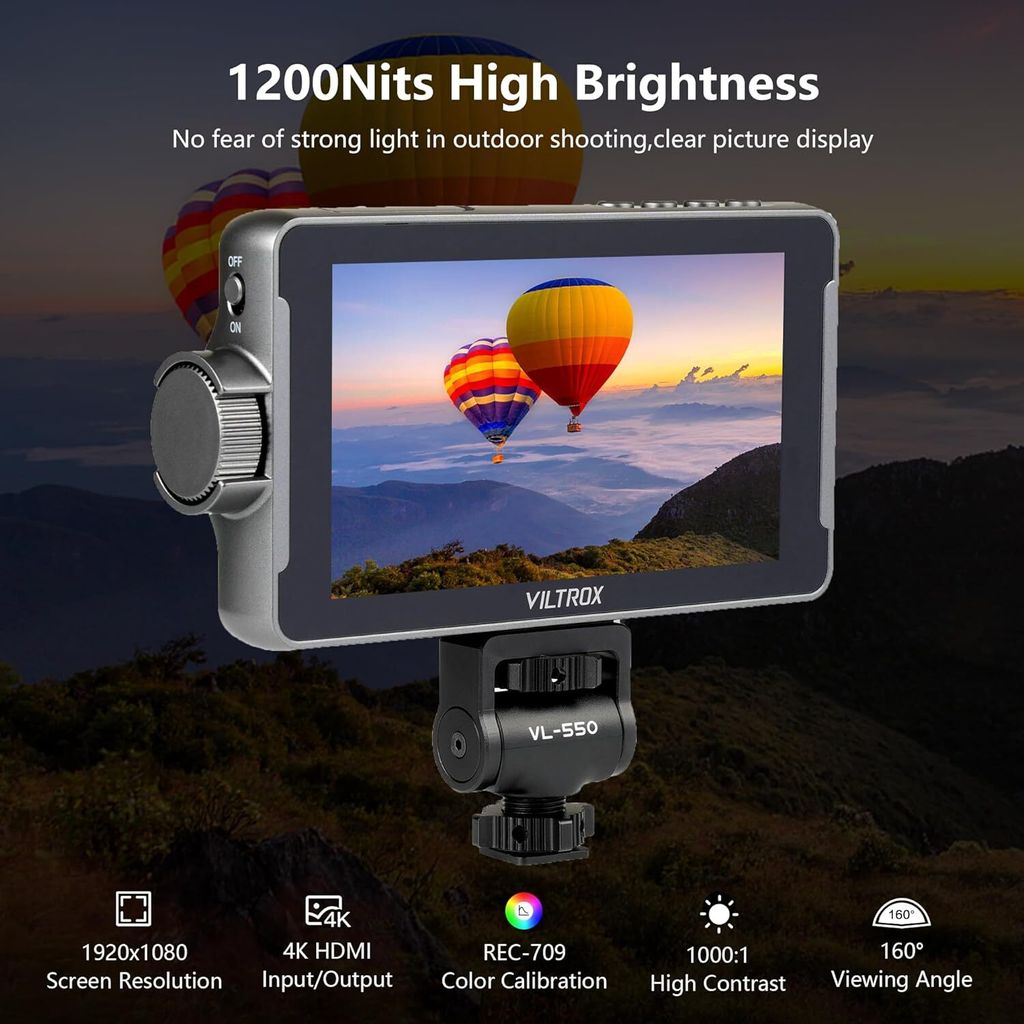

VILTROX DC-550 Pro touchscreen camera field monitor provides a sharp image, with 1200 nits high-brightness display screen, 4K full HD 1920 x 1080 resolution at 30Hz, a 5.5inch IPS panel with 160° viewing angles, 1200:1 contrast ratio, REC-709 color calibration, making you enjoy sharper and richer colors image.

DC-550 Pro camera monitor has lots of professional monitoring functions, such as Parade waveform, vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc. By importing 3D LUT through the SD card, the photographer can achieve a variety of creative effects in the post-editing and use any camera Log mode to shoot and monitor.

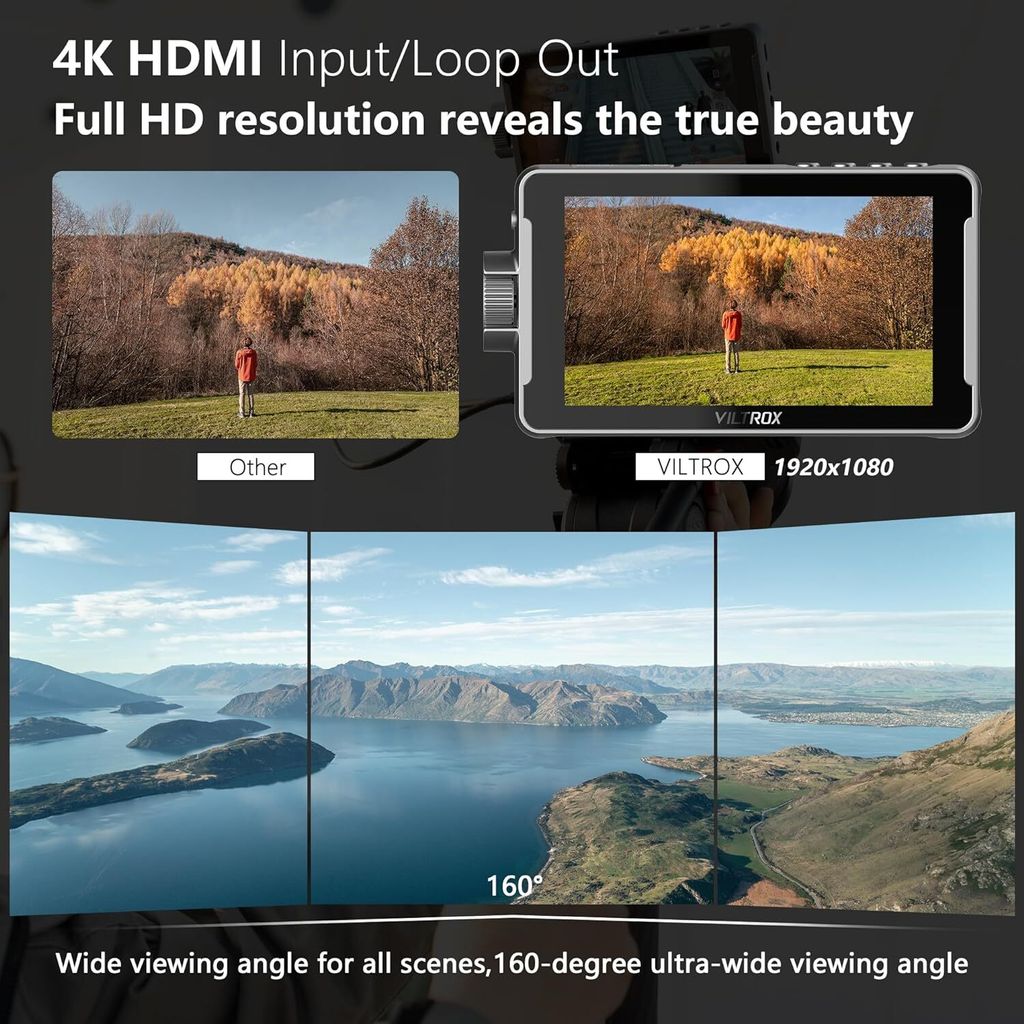

Designed with HDMI input and output interfaces, the monitor supports up to 4K 30Hz, 3840X2160p, 4096X2160p (30/25/24Hz) HDMI signals, which will synchronize the camera footage clearly to a larger screen, allowing the director and photographer to watch from different angles. Plus, you can monitor audio using the 3.5mm stereo headphone jack.

Accepts the Sony NP-F series battery(included 1pcs NP-F550 Battery) as power source. Besides those, the monitor accepts the DC IN 12-18V DC power supply and added Type-C 5V 3A power bank power supply function, convenient for indoor and outdoor shooting activities.

With full touchscreen controls, you can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture. You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical button control. Press/Rotate the wheel button for quick selection and function settings.

Product Specifications

In the Box

• 1 x  VILTROX DC-550 Pro
• 1 * Sunshade Hood
• 1 * NP-F550 2200mAh Battery
• 1 * VL-550 Cold Shoe Adapter
• 1 * Type-c Cable
• 1 * Micro-HDMI Cable
• 1 * Mini-HDMI Cable
• 1 * Storage Box
