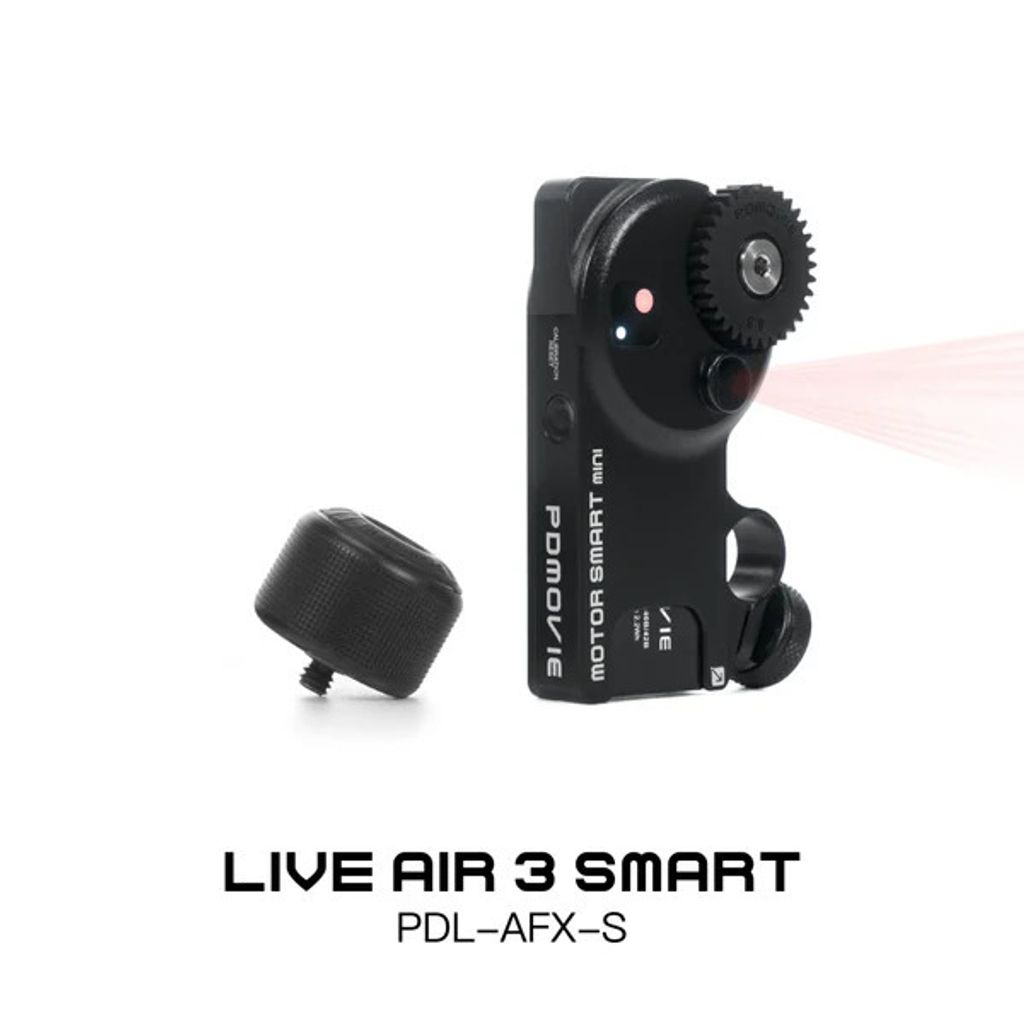

PDMOVIE Liver Air 3 Smart LiDAR Auto Focus Wireless Focus Lens Control Kit

Key Features

• 1.Paired with intelligent ranging LiDAR, achieve automatic autofocus
• 2.The integrated module design combines multiple functions into one
• 3.AI lens model virtual technology, compatible with multiple lenses
• 4.Quick installation, ready to use at any time
• 5.Powerful performance with fine resolution, ultra-low latency for executing operational commands
• 6.The battery is not only durable but also easy to replace
• 7.Easy switching between manual and automatic modes
• 8.A wide range of expandable accessories, suitable for various usage scenarios

PDL-AFX-RA-S is not only an extremely practical wireless follow-focus system but also boasts a powerful LiDAR autofocus feature. Each lens requires a one-time autofocus setup, and saved lens data eliminates the need for repeated adjustments. Up to 5 lens data can be stored, Including 5 color labels for easy channel identification. Simply calibrate the lens travel for automatic retrieval of lens data after each use.

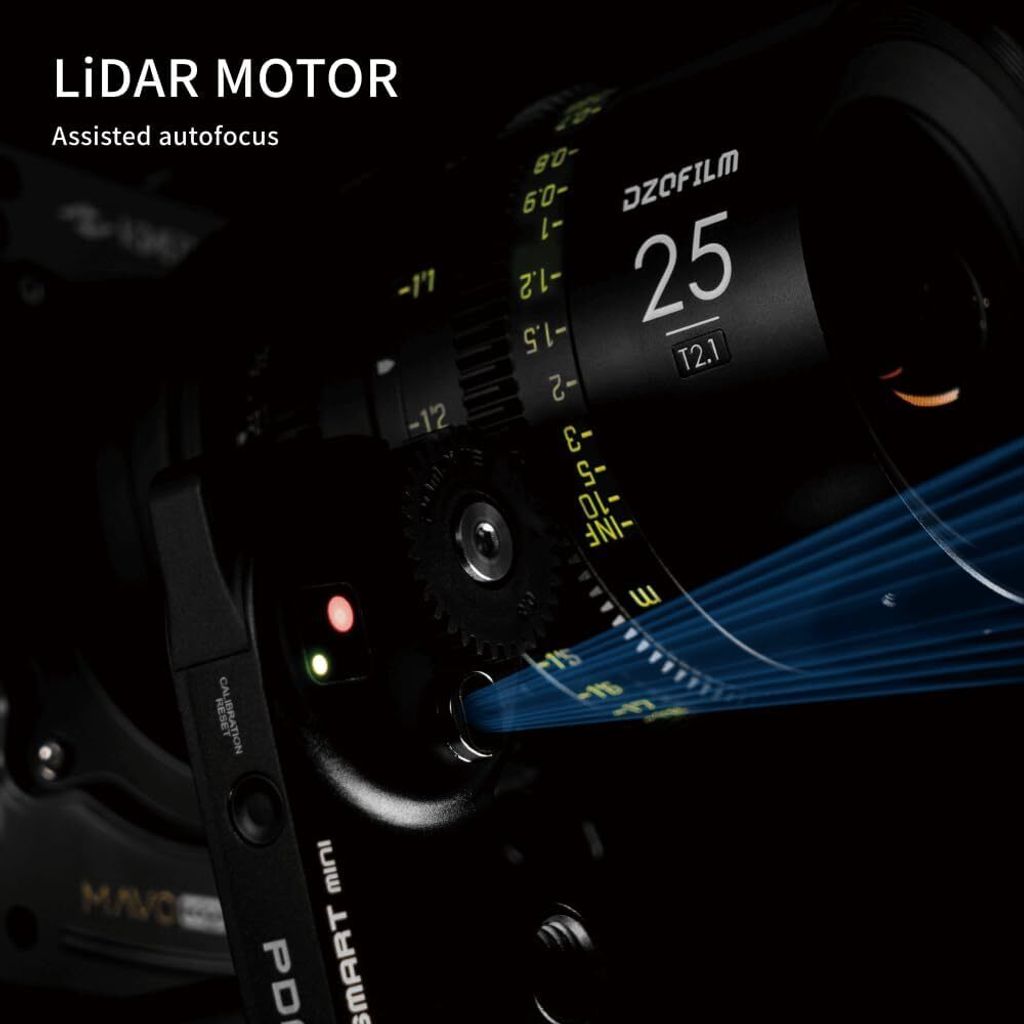

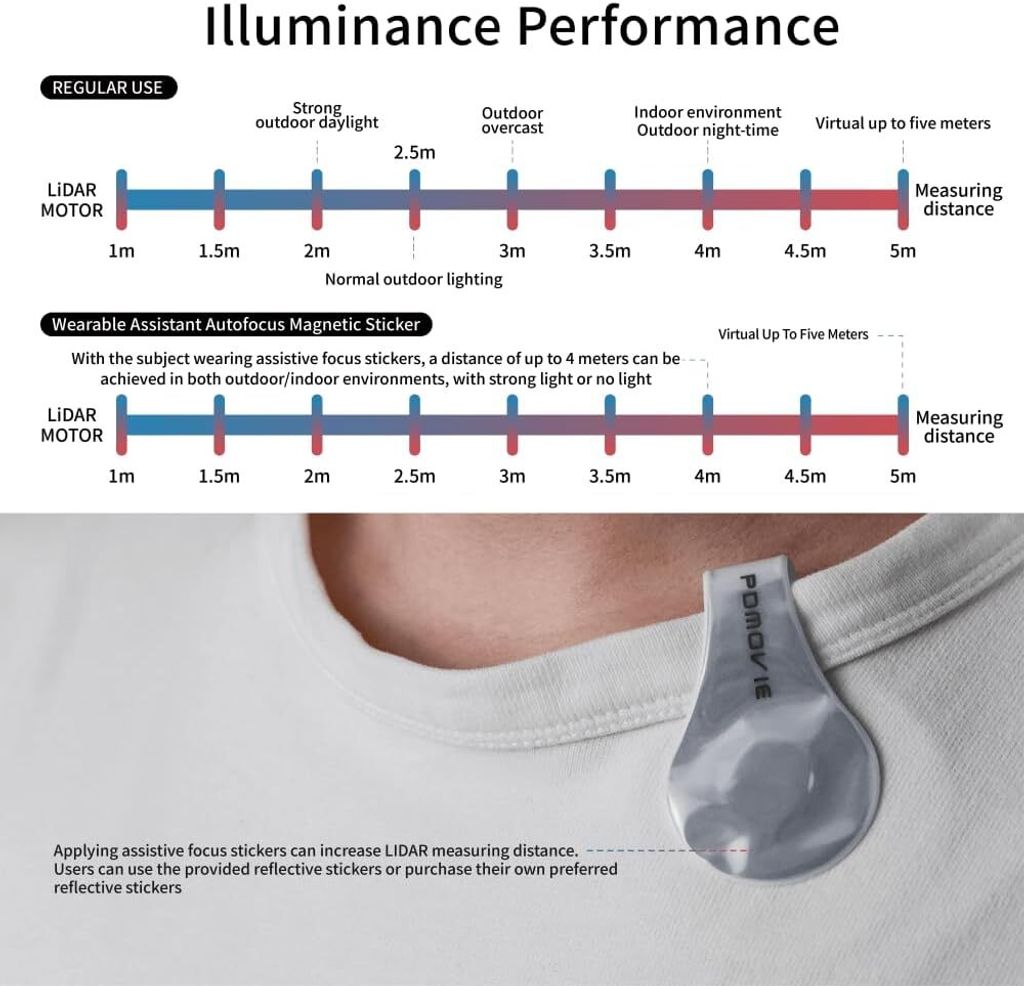

LiDAR automatic ranging projects a total of 4096 ranging points with a 28-degree angle and an actual scanning distance virtually extending from 4m. The 0.75Nm high-torque LiDAR motor at 16384DPI effortlessly drives various lenses. The autofocus function is compatible with manually focused lenses featuring hard stops or DSLR lenses with depth of field scale frames. Three adjustable autofocus speeds include high-speed sports mode, medium-speed standard mode, and slow-speed cinematic mode. Autofocus distance may be compromised in bright sunlight but can be restored by wearing reflective stickers. Additionally, scanning distance is unaffected by any lighting or extremely dark environments.

Array Focusing Technology automatically identifies and tracks the object focus closest or farthest (Only low-speed) from the LiDAR within the scanning range. If the scanned object moves out of the autofocus area, the motor will automatically move to a position near infinity until the object is detected again, then it moves to the actual focus distance. When the motor is not connected to Bluetooth and no object is within the scanning range, it automatically moves to the near-infinite focus point. After connecting to Bluetooth, if no object is within the scanning range, the motor automatically moves to the 5-meter focus point for 5 seconds, then moves to the near-infinite focus point.

Comes with 2 motor batteries, each capable of working for up to 8 hours, and 2 control wheel batteries, each working for up to 10 hours. All batteries are rechargeable, with a charger that can simultaneously charge both motor batteries. Also includes a large wheel extension device enhances focus control precision, a universal lens gear ring (supports outer diameters from 42mm to 82mm), a 10cm long 15mm outer diameter rod, a 5cm long 15mm outer diameter rod, a 15mm clamp accessory, a 15mm rod adapter, and a multifunctional fixture. The product is ready for installation and use upon opening.

You can choose between motor autofocus and manual focus control using the small control wheel. A simple twist allows for seamless switching between automatic and manual focus. The small wheel comes with a built-in 1/4-inch screw, making it easy to install in any position. PDL-AFX-RA-S is a enables autofocus for manually focused lenses in various scenarios such as online streaming, solo dance, close-range sports, V-log, etc. Moreover, it is a wireless follow-focus system that effortlessly accommodates both individual video creators operating solo and collaborative team shooting. It opens up new possibilities and expands the application range for your video content creation.in

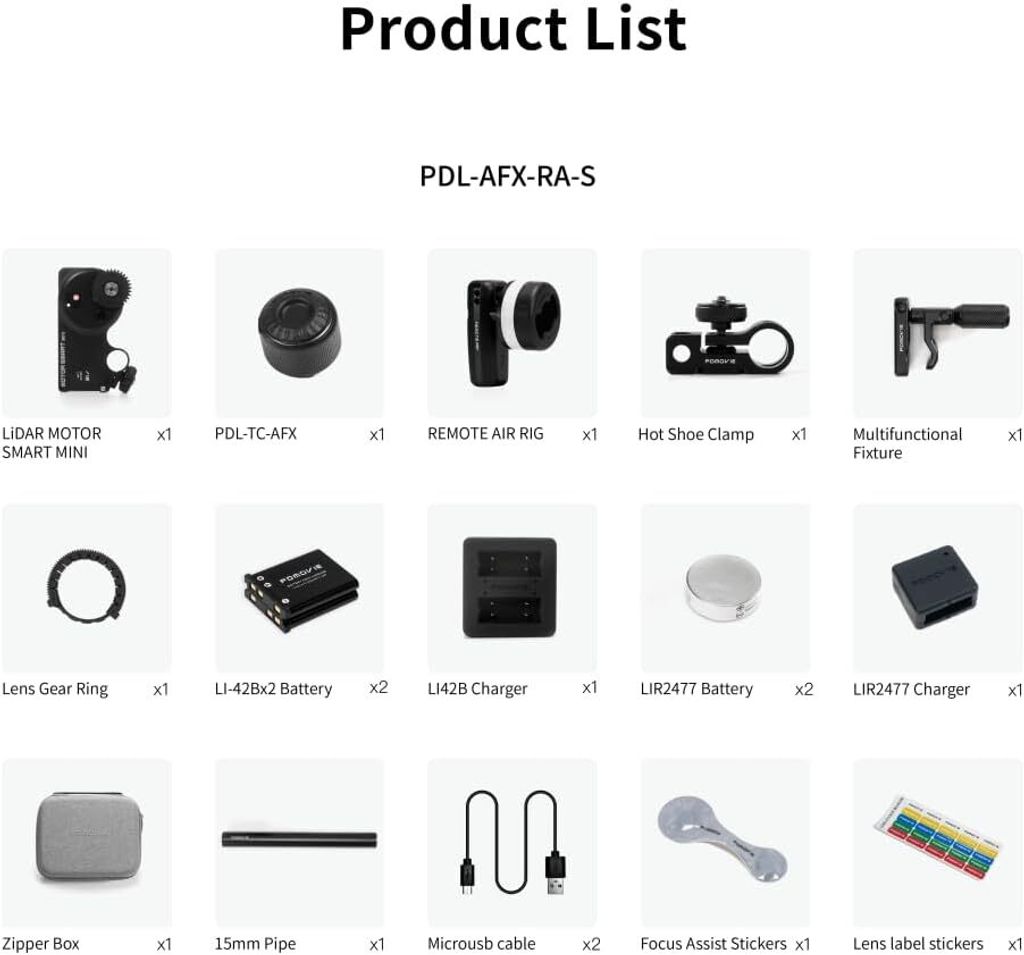

In The Box

• PDMOVIE Bluetooth Focus Controller for PD-BTMP, PD-BTMP-N, PD-BTMP-S & PD-BTMP-SP
• PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
• 1/4"-20 Screw
• Limited 1-Year Manufacturer Warranty
• PDMOVIE MOTOR SMART Mini Intelligent Focus Motor
• 2 x LI42B Battery
• Micro-USB Charging Cable
• USB Charger
• 2 x Assistive Focus Tile
• Limited 1-Year Manufacturer Warranty
• Registration Extension: 6-Month
• PDMOVIE LIR2477 Battery for PDL-TC-AFX Focus Controller
• Limited 1-Year Manufacturer Warranty
• 2 x PDMOVIE LI-42Bx2 Battery for PD-BTMP, PD-BTMP-N & PD-BTMP-S
• Limited 1-Year Manufacturer Warranty
• PDMOVIE 2/4-Channel Battery Charger for LI-42B & LI42Bx2 Batteries
• USB Cable
• Limited 1-Year Manufacturer Warranty
• PDMOVIE 15mm Rod Clamp with Rod & Shoe Adapter for Motor
• PDMOVIE 15mm Rod (5.9")
• 2 x 1/4"-20 Screw
• Allen Wrench
• Limited 1-Year Manufacturer Warranty
• PDMOVIE 15mm Rod (5.9")
• Limited 1-Year Manufacturer Warranty
• USB Charging Cable
• Lens Gear Ring
• Mounting Clamp
• 2 x Focus Assist Tile
