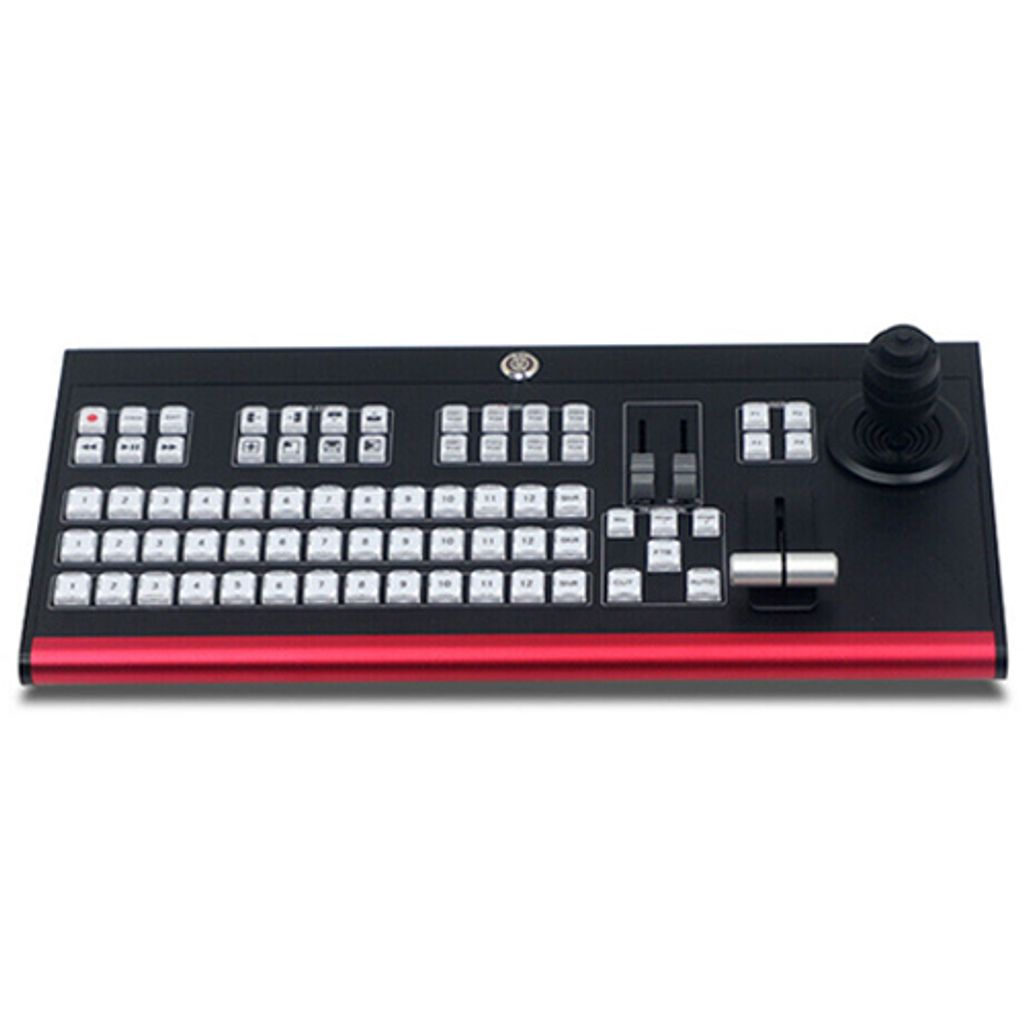

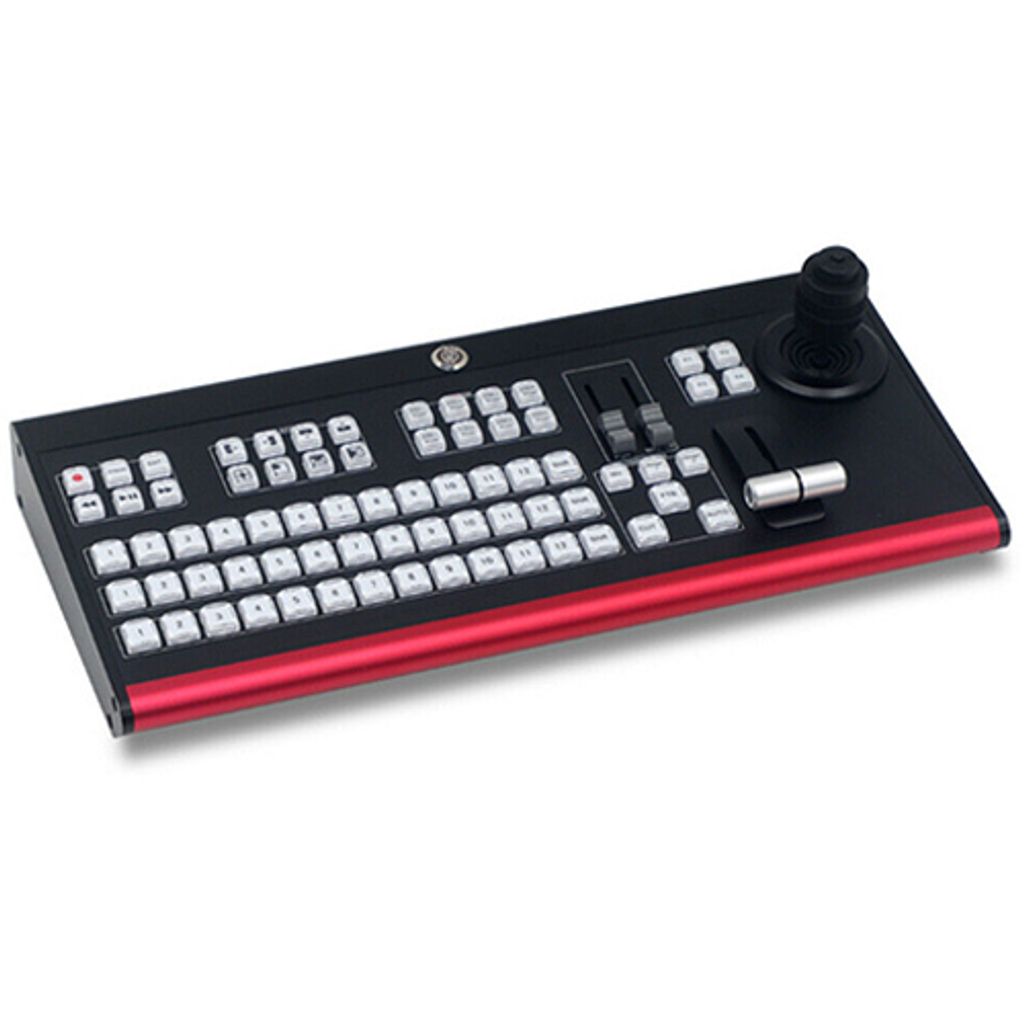

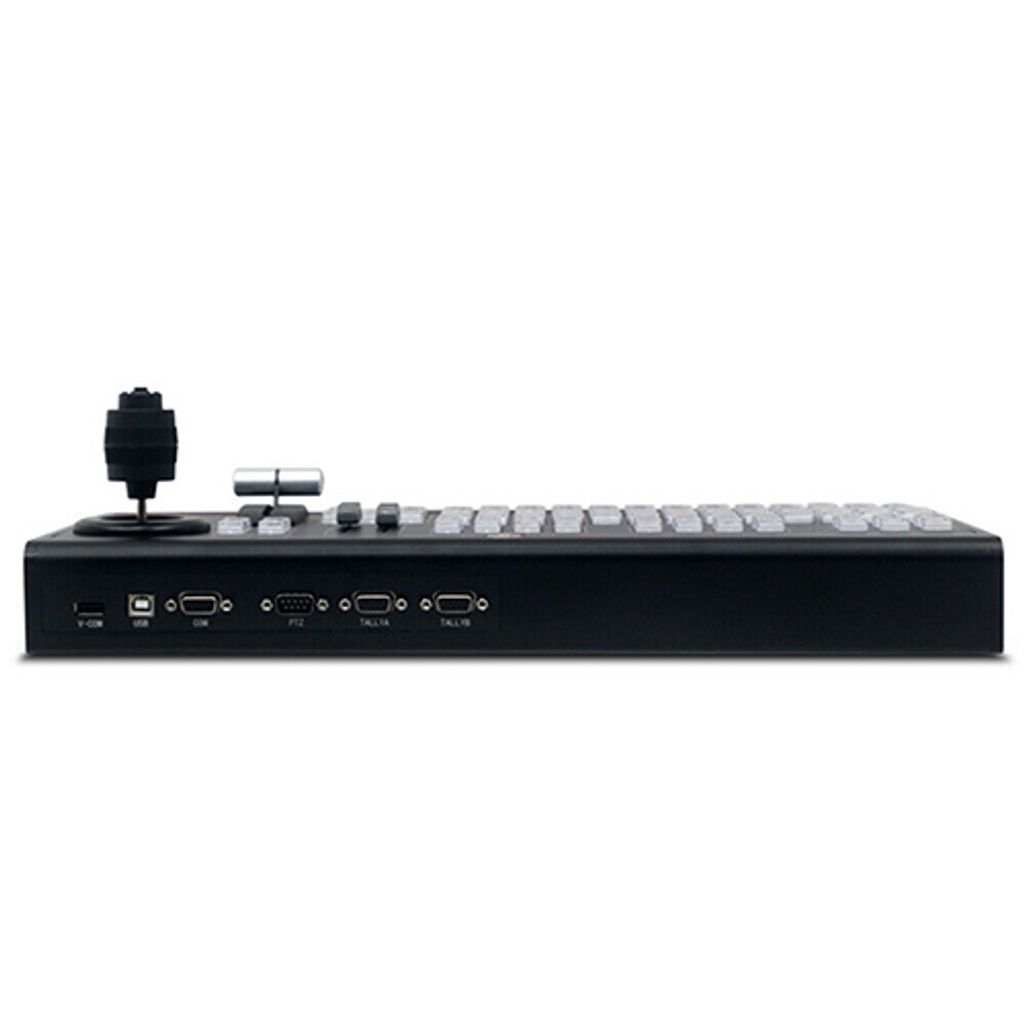

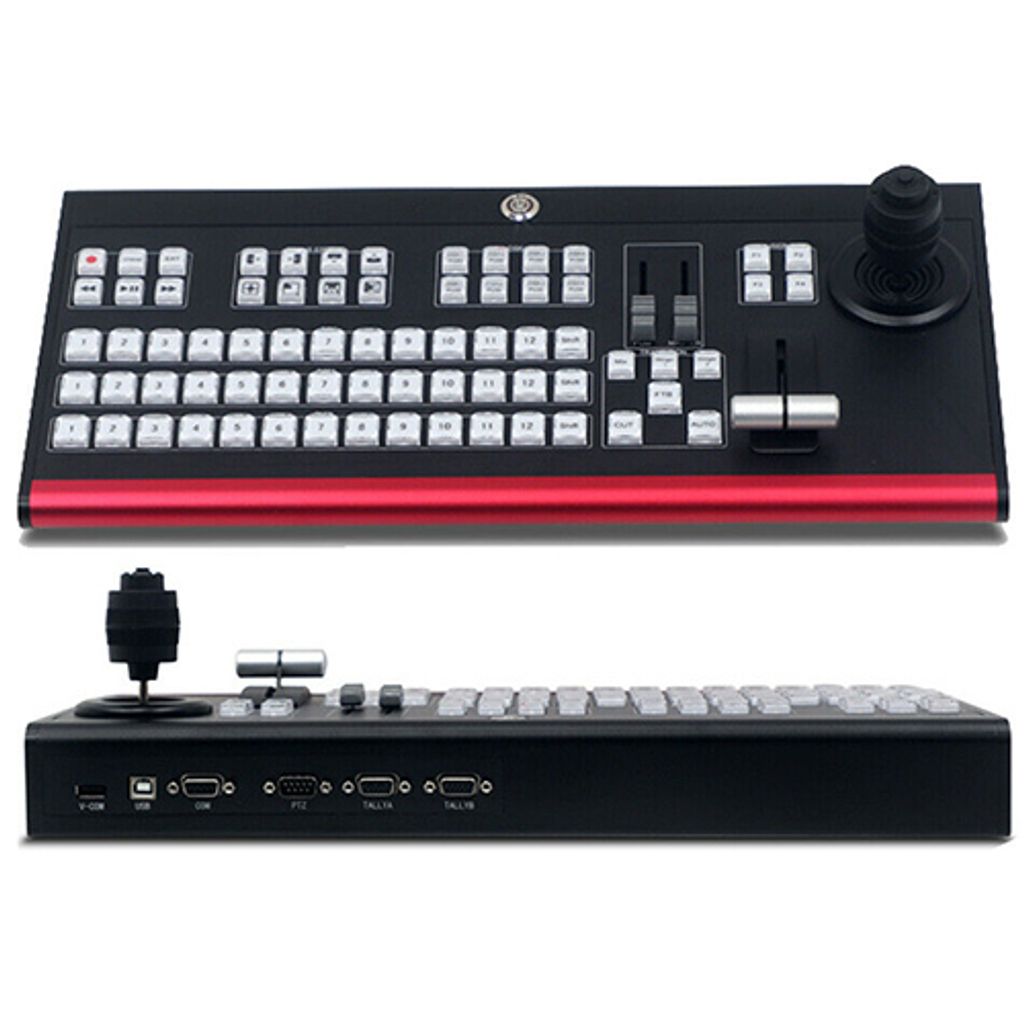

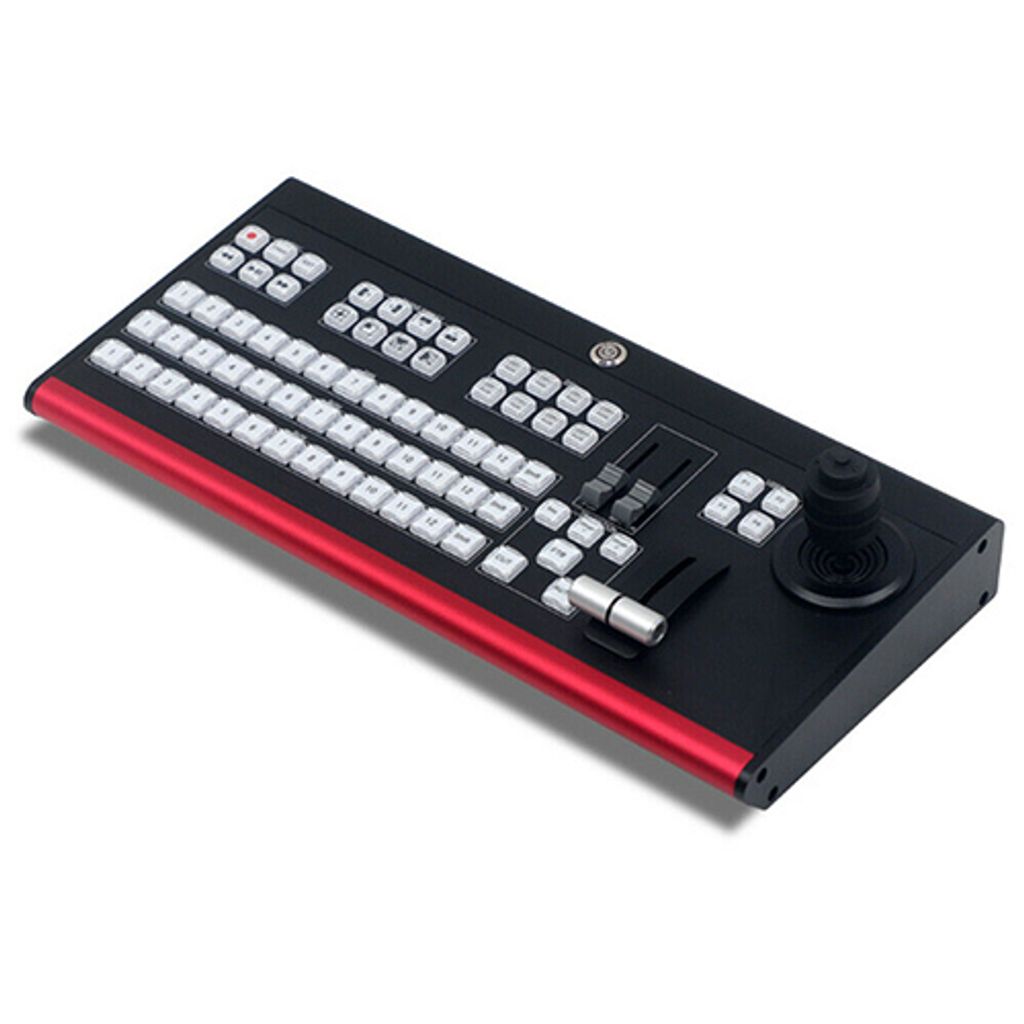

TYST Video TY-1500HD Switcher Control Panel

RM 1,800.00
RM 1,800.00
RM 0.00
Fast shipping | CXG
Fast shipping
Secure payments | CXG
Secure payments
Authentic products | CXG
Authentic products
View More

Key Features

  • Adopt integrated hardware design, easy to use and easy to maintain, fully embedded system, simple structure, integrated guide switching, resource recording, network live broadcast, mixer, PTZ control and stunt transition.
  • Support selectable PGM/PVW 4 groups of 12 downstream key settings.
  • Support 12-channel PGM and PVW switching preview.
  • Support matching with Tianying 4K fusion media virtual studio system to realize the push- pull swing and rocker effect of the virtual machine position.
  • Support 4-channel wired/wireless PTZ camera preset position and camera position panning and aperture zoom.
  • Supporting the Tianying live broadcast system to achieve fade in and fade out, flying windows, sliding images, push and pull and 2-way Stinger animation transition.


The new TY-1500HD switcher panel is an external guide switcher designed specifically for live broadcast systems and full-media 4K virtual studio systems. It has an elegant design and is a switcher, live broadcast, recording and PTZ control designed specifically for guides. It is a professional hardware control panel for one machine. It has a full modern look and MIDI communication protocol interface, which can greatly speed up the workflow of live playback. The panel uses high-quality curved buttons to reduce the chance of misoperation. The buttons are backlit to help you quickly identify important keys. In addition, he is also equipped with quick search dial and T-shaped putter. Buttons support dynamic display, and all buttons support custom settings.



Specifications:

Name:Switcher panel;

Model:TY-1500HD

Function key:Power button-1 pc+Backlight function keys ---71+T-bar fader - 1 piece+PTZ joystick - 1 pc+Volume keys - 2

Size:429*220*115mm Including PTZ-containing remote stick 429*220*50mm Length X width X height

Weight:2.06kg



In the Box

  • 1x Switchboard panel
  • 1x USB cable
  • 1x Manual
  • 1x Limited 1-Year Warranty
