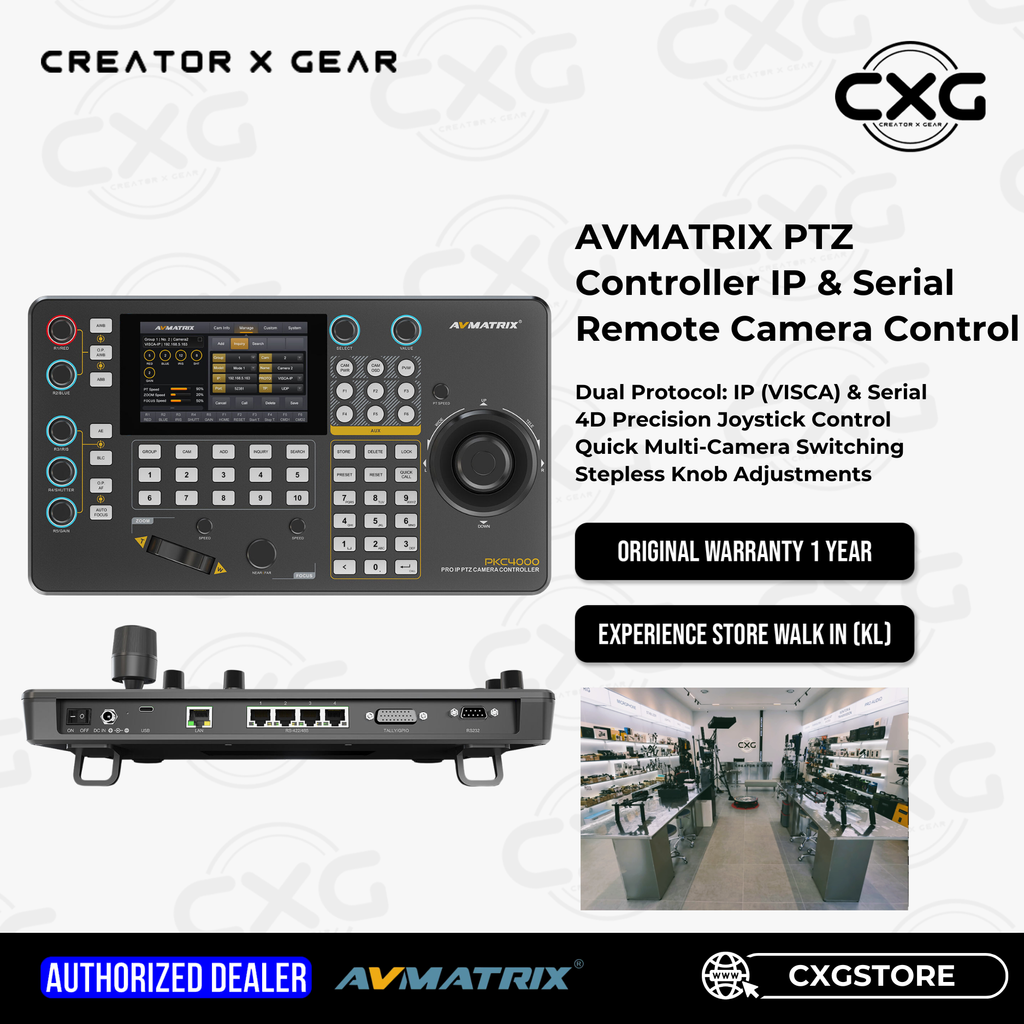

AVMATRIX IP & Serial PTZ Camera Controller with NDI

Key Features

• Pan/Tilt/Zoom/Lock PTZ Controls
• NDI, IP & Serial Communication
• Control up to 7 Serial Cameras
• Control up to 100 NDI, IP Cameras
• VISCA/VISCA-over-IP/Pelco-P & D Support
• Power-over-Ethernet (PoE) Support
• Simultaneous Multi-Brand Camera Control
• 12 VDC Power Supply Included

Control up to 100 PTZ cameras with a single operator using NDI, IP, or serial with the IP & Serial PTZ Camera Controller with NDI from AVMATRIX. The controller offers joystick and button control for up to 100 PTZ cameras over IP and up to 7 cameras via serial, and it can control up to 10 groups of 10 cameras in each group.

Physical control features include glowing buttons for working in the dark, six user-assignable keys for quick function access, a 4D joystick, a rocker for smooth in/out zooms, 255 programmable camera presets, 10 quick presets, and numerous knobs and buttons.

Control protocol support includes NDI, VISCA, VISCA-over-IP, ONVIF, Pelco-P, and Pelco-D protocols over IP and serial RS-232, RS-422, and RS-485 communication. It enables you to control the speed of your pan, tilt, zoom, and lock moves and incorporates an LCD screen. The controller also offers the ability to control iris, focus, white balance, exposure, and on-the-fly speed control to control the finer camera settings on the PTZ cameras, and it supports tally/GPIO input.

In the Box

• AVMATRIX IP & Serial PTZ Camera Controller with NDI
• Power Adapter
• Tally Conector
• Limited 1-Year Manufacturer Warranty
